Portal Axles for Trucks, Jeeps & Broncos: Complete Guide to 74 Weld & Turn Off Road Kits
Portal axles are one of the highest-impact upgrades available for serious off-road vehicles. This guide explains what portal axles are, how portal axle systems work, their key benefits for rock crawling and mud, and detailed comparisons of the leading kits from 74 Weld and Turn Off Road. Missouri Off-Road is an authorized dealer for both manufacturers.
What Are Portal Axles and How Do Portal Axle Systems Work?

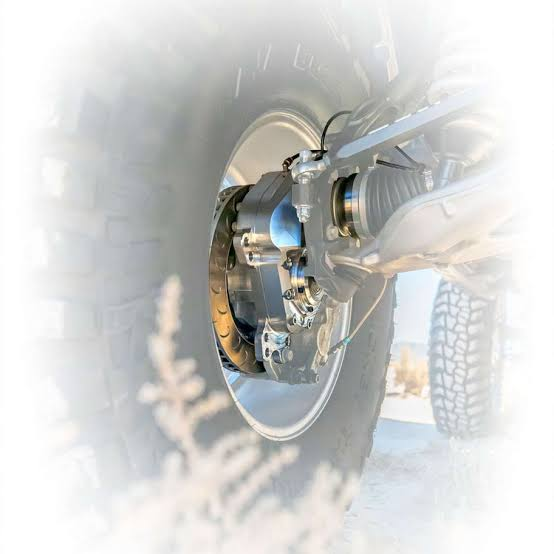

A portal axle (also called a portal gear box or portal hub) is a geared reduction unit mounted at each wheel end. Power from the axle shaft enters the top of the portal box and transfers through a set of gears to a lower output that drives the wheel hub. This design offsets the axle centerline upward relative to the hub center.
How portal axles deliver results:
- Raise the differential, axle tubes, and underbody for true ground clearance gains.
- Provide gear reduction at the hub, multiplying torque after it passes through the rest of the drivetrain.
- Allow larger tires without the same stress on ring-and-pinion, transfer case, driveshafts, and CVs.
- Preserve near-stock suspension geometry, steering feel, and on-road ride quality.
Portal axles function as an all-in-one solution: they combine lift, re-gearing, and clearance in a single bolt-on kit. They differ from traditional suspension lifts, which raise the body but leave differentials at the original vulnerable height.
Portal technology has been proven for years in the powersports world. Side-by-side (SxS/UTV) owners regularly run 44-inch and larger tires with portal axle setups. The same principles now transform trucks, Jeeps, and Broncos into high-clearance rock crawlers or mud machines.
Key Benefits of Portal Axles for Off-Road Vehicles
| Benefit | Description | Off-Road Impact |
|---|---|---|
| True Ground Clearance | Lift occurs at the axle/hub (typically 3.88–4.75 inches) | Differentials clear rocks and obstacles that stop conventional lifts |
| Built-in Gear Reduction | 11–22% reduction at the hubs | Larger tires without drivetrain overload; better crawl ratios |
| Larger Tire Capability | Supports 37–40″+ tires more effectively | Improved flotation in mud and traction over rocks |
| Reduced Drivetrain Stress | Torque multiplication happens after factory components | Longer life for axles, diffs, and transfer case |
| Preserved Geometry & Ride | Maintains OEM suspension design | Daily-driver manners with extreme trail capability |
| Full System Compatibility | Often retains factory ABS, parking brakes, and sensors | Safer and more refined than many extreme axle swaps |
These advantages make portal axles especially effective for rock crawling and mud riding.

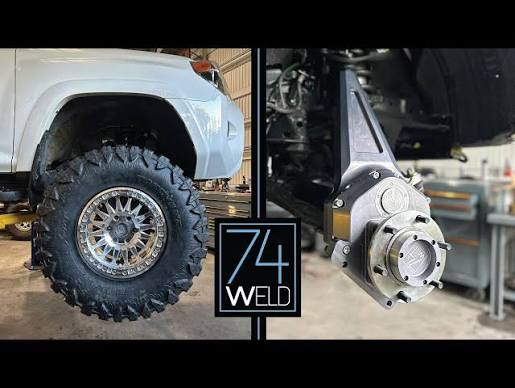

74 Weld Portal Axles: Race-Proven Systems
74 Weld developed its portal technology from Unimog-inspired designs beginning around 2009 and refined it through Ultra4 and Trophy Truck racing, including Ford Performance King of the Hammers Broncos. Kits are manufactured in-house in the United States using advanced CNC processes.
Typical 74 Weld Gen 2 portal axle specifications:
- Lift: Approximately 3.88 inches
- Gear reduction: 1.22 (22%)
- Design: 4-gear portal boxes
- Materials: Billet 7075 knuckles with steel inserts, billet 6061 portal boxes
- Features: 8-lug 1-ton unit bearing conversion on many kits, full-float rear conversion with 4340 heat-treated shafts, larger vented rotors, factory ABS compatibility
- Wheel requirements: Often 17-inch minimum with recommended backspacing
Vehicle applications include:
- Toyota / Lexus platforms (Tacoma, 4Runner, Tundra, Land Cruiser, GX, LX, and related models)
- Jeep Wrangler JL and Gladiator JT
- Ford Bronco and Ranger Raptor
- Race-specific 2-gear and 4-gear variants
Complete vehicle-specific kits are commonly priced around $17,000. 74 Weld positions its systems as true all-in-one upgrades that deliver lift, re-gearing, clearance, and larger-tire support while retaining stock suspension components.
Turn Off Road Portal Axles: Bronco-Optimized Design
Turn Off Road focuses its portal system on the 2021+ Ford Bronco (2-door and 4-door non-Raptor models). The design prioritizes preserving Ford’s original suspension engineering while adding trail capability suitable for daily drivers that also see hard use.
Typical Turn Off Road portal axle specifications:
- Lift: Approximately 4.75 inches at the axle
- Gear reduction: 11%
- Design: 4-gear system with straight-cut gears
- Materials: CNC-machined 7075 aluminum housings, steel threaded inserts, hardened steel gears
- Features: Significantly increased oil capacity (approximately 66% more than many competitors), robust sealing, service access, retention of factory ABS and parking brake, rear axle shafts included
- Tire support: 37–40 inch range depending on setup
- Price: Approximately $11,999.99 for a complete front-and-rear kit
Turn Off Road emphasizes serviceability, thermal management, and long-term reliability for mixed street and trail use.
74 Weld vs Turn Off Road Portal Axles Comparison
| Feature | 74 Weld | Turn Off Road |
|---|---|---|
| Primary Focus | Multi-platform (Toyota, Jeep, Ford) | Ford Bronco (non-Raptor) |
| Approximate Lift | 3.88 inches | 4.75 inches |
| Gear Reduction | 22% (1.22) | 11% |
| Typical Kit Price | ~$17,000 | ~$12,000 |
| Key Strengths | Higher reduction, broad vehicle coverage, race heritage | Higher clearance, Bronco-specific packaging, increased oil capacity |
| Best For | Owners wanting maximum gear reduction and multi-brand options | Bronco owners seeking maximum clearance with refined daily manners |
Real Owner and Tester Experiences with Portal Axles
Independent testing and owner reports show strong real-world results. A 6th-generation 4Runner equipped with 74 Weld Gen 2 portals, largely stock IFS suspension, and 37-inch tires successfully completed the Rubicon Trail while keeping pace with vehicles on larger tires in many sections. Reviewers noted dramatic under-differential clearance, the ability to run larger tires with manageable drivetrain stress, and on-road behavior that remained close to factory.
Similar feedback appears across platforms: portals deliver usable ground clearance that conventional lifts cannot match, improve capability in rocks and mud, and retain daily drivability when properly installed. Early production units sometimes required refinements in seals or breathers; current designs from both manufacturers emphasize durability and service access. Powersports users have long demonstrated extreme tire sizes with portals; automotive kits scale that capability to full-size vehicles.
Why Buy Portal Axles from Missouri Off-Road?
Missouri Off-Road is an authorized dealer for both 74 Weld portal axles and Turn Off Road portal axles. We help customers select the correct kit for their specific vehicle, tire goals, and intended use (rock crawling, mud, overlanding, or mixed driving). Proper fitment, complementary components, and professional installation guidance matter for long-term reliability.
Portal axles represent a significant investment that consolidates multiple upgrades into one engineered system. When the goal is maximum usable ground clearance, larger tires, and reduced drivetrain stress without destroying daily manners, they are among the most effective solutions available.
Frequently Asked Questions About Portal Axles
What is the main advantage of portal axles over a regular lift kit? Portal axles raise the differentials and axle tubes themselves, delivering true underbody clearance while also providing gear reduction. Conventional lifts raise the body but leave the lowest points (diffs) at the original height.
Can I still drive my vehicle daily with portal axles? Yes. Both 74 Weld and Turn Off Road systems are designed to retain OEM-like geometry and ride quality when properly set up.
What tire sizes work with these portal axle kits? Most kits support 37- to 40-inch tires effectively, depending on the specific vehicle, wheel offset, and additional clearance modifications.
Do portal axles require re-gearing the differentials? No. The gear reduction occurs at the hubs, which is one of their primary advantages.
Are these kits bolt-on? Yes. Current 74 Weld and Turn Off Road automotive portal systems are engineered as complete bolt-on kits that retain factory ABS and related electronics on supported vehicles.
